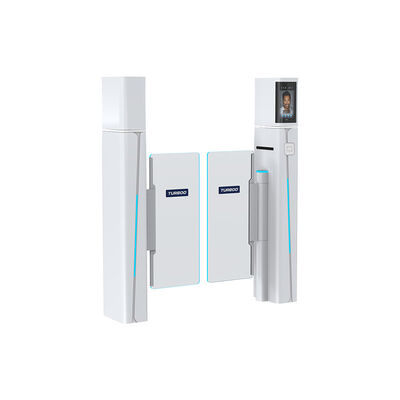

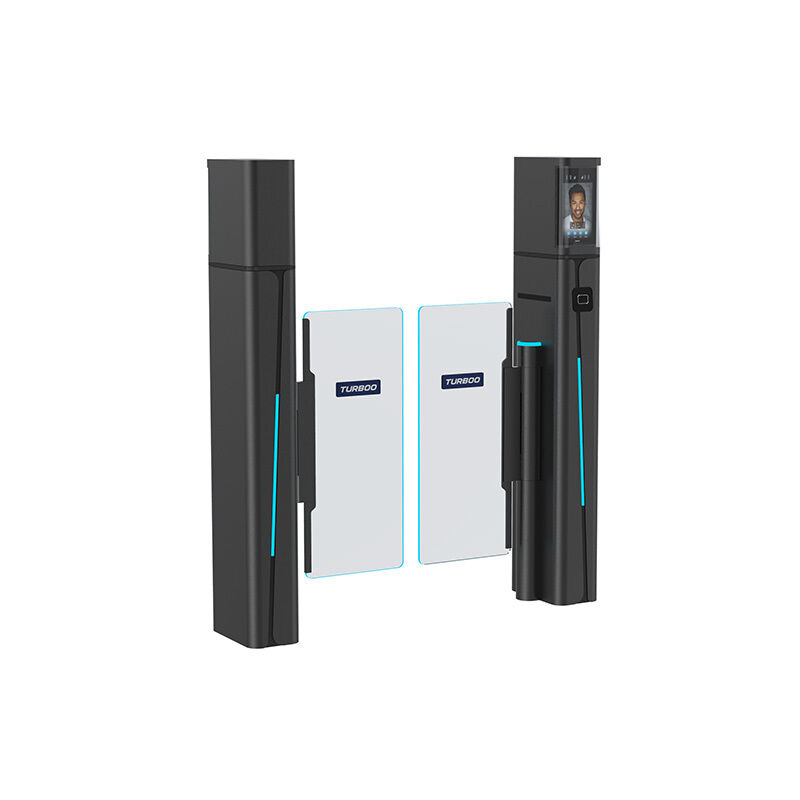

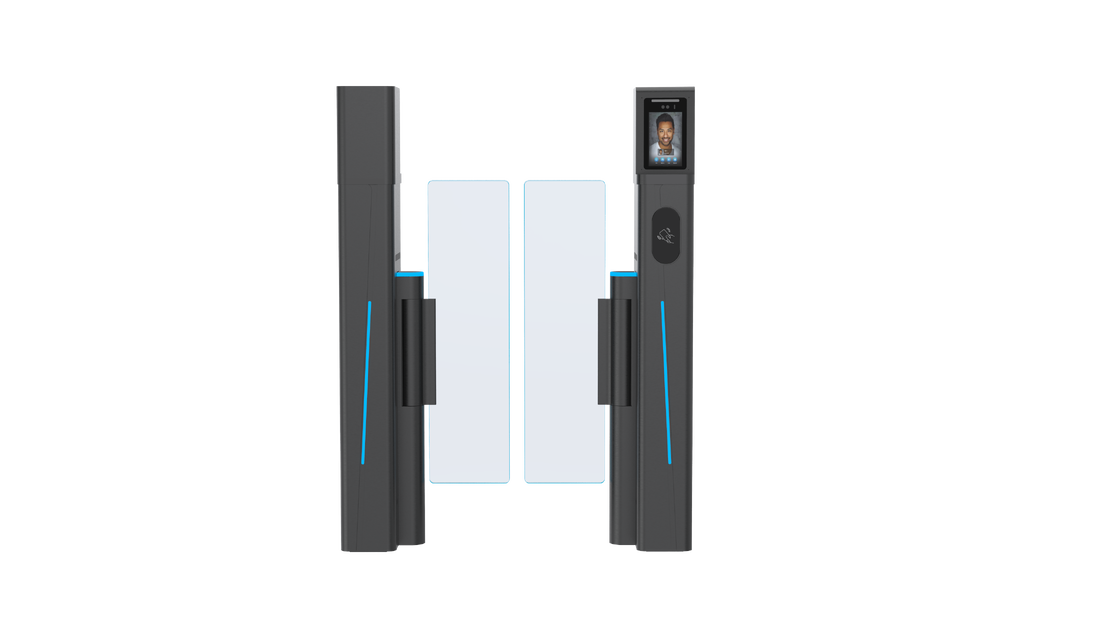

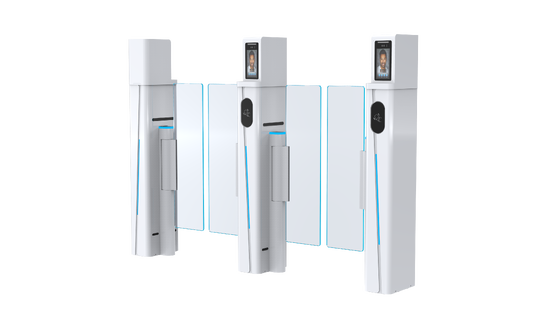

Office Building Entrance Access Control Turnstile Speed Gate Nova LA3219H

Name: Office Building Entrance Access Control Turnstile Speed Gate Nova LA3219H
Brand: Turboo Automation Co., Ltd
SKU: LA3219H
Availability: InStock

Nama merek:	Turboo
Nomor Model:	LA3219H
MOQ:	1 buah
harga:	negotiable
Waktu Pengiriman:	7-15 hari kerja
Ketentuan Pembayaran:	L/C, T/T

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

CE, ISO9001,FCC,RoHS,etc.

Ukuran:

320*180*1400mm

Bahan:

Paduan Aluminium 5.0mm

Lebar lintasan:

600-900mm

Sensor:

Modul Visual 2D

Pengemudi:

Servo tanpa sikat 100W

Pengendali:

Papan Servo

Kekuatan:

120W

Kemasan rincian:

Paket Kotak Kayu

Menyediakan kemampuan:

Pengangkatan Pneumatik

Menyoroti:

office building speed gate turnstile

access control turnstile with warranty

Nova LA3219H speed gate

Deskripsi Produk

Office Building Entrance Access Control Turnstile Speed Gate Nova LA3219H

Product Overview

The Office Building Entrance Access Control Turnstile Speed Gate Nova LA3219H is designed for secure and efficient access control in professional office environments.

Functions & Features

Reasonable and reliable design with low noise, smooth operation, and long service life
Advanced security functions including anti-tailgating and anti-reverse pass protection
Configurable card settings with "memory" or "without memory" functions
Automatic reset function - returns to locked state if not passed within set time
Infrared anti-clip protection during gate opening and operation
Compatible with IC, ID cards, scanning systems, and face recognition technology
Dual operation modes: open or closed configurations
Multiple working modes including two-way card reading and one-way card reading

Size Drawing

Technical Specifications

Parameter	Specification
Size	3001601400(mm)
Chassis	Housing: 5mm Aluminum alloy
Movement	Mechanism: Servo Speed Door Door panel: 10mm Transparent PC Pass Lane: 600-900mm
Electronic Control	Control board: Servo control board Motor: Brushless servo 40:1 100W IR sensor: 2D Visual Module Air switch: 2P
Power Supply	24V 500W /12V 3A
Accessories	Connection cable: 2*1.0m㎡ RVV Network cable: 5m with crystal tips on both ends
Package	Pearl cotton: Fully encapsulated protective cotton Cardboard box: 3602001460

Case Examples
