Security Airport Immigration Inspection Check AB Turnstile Gate M3620-AB

Name: Security Airport Immigration Inspection Check AB Turnstile Gate M3620-AB
Brand: Turboo Automation Co., Ltd
SKU: M3620-AB
Availability: InStock

Nama merek:	Turboo
Nomor Model:	M3620-AB
MOQ:	1 buah
harga:	negotiable
Waktu Pengiriman:	7-15 hari kerja
Ketentuan Pembayaran:	L/C, T/T

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

CE, ISO9001,FCC,RoHS,etc.

Ukuran:

3200*210*1020mm

Bahan:

SPCC 2,0 mm Dengan Lapisan Serbuk

Lebar lintasan:

600-900mm

Sensor:

Tirai Cahaya 80 Titik + 20 pasang sensor

Pengemudi:

Servo tanpa sikat 100W

Pengendali:

Kontrol Servo + Kontrol Logika Sensor

Kekuatan:

220W

Kemasan rincian:

Paket Kotak Kayu

Menyediakan kemampuan:

Pengangkatan Pneumatik

Menyoroti:

Security turnstile gate M3620-AB

Airport immigration inspection turnstile

Speed gate turnstile with AB control

Deskripsi Produk

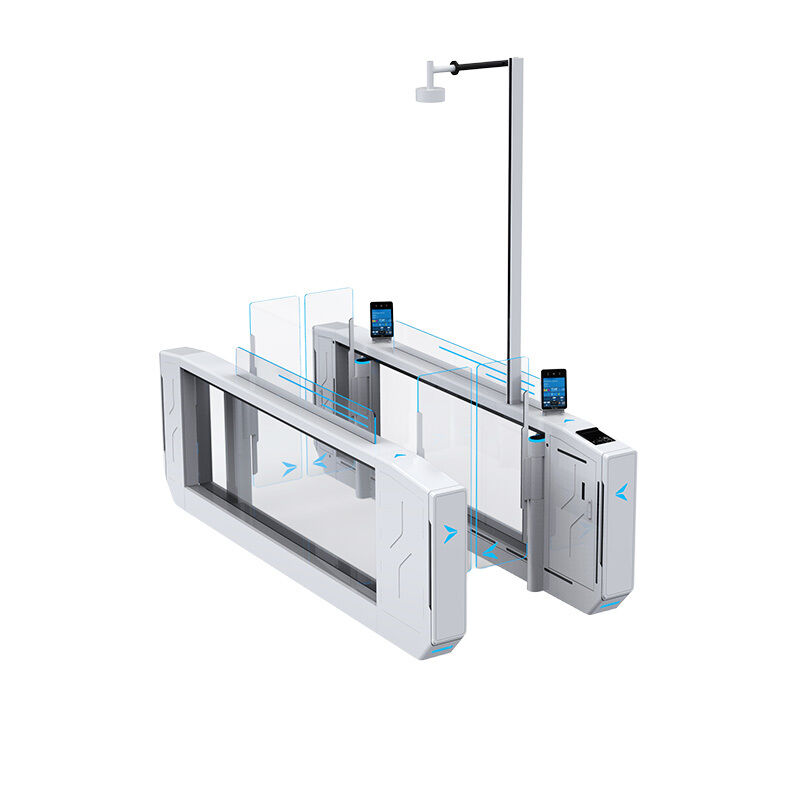

Security Airport Immigration Inspection Check AB Turnstile Gate M3620-AB

Product Overview

The M3620-AB Turnstile Gate is engineered for high-security airport immigration and inspection checkpoints, featuring advanced access control technology and robust construction for reliable performance in demanding environments.

Functions & Features

Reasonable and reliable design with low noise operation and extended service life
Advanced security functions including anti-tailgating and anti-reverse pass protection
Configurable card memory settings with "with memory" or "without memory" options
Automatic reset function - gate returns to locked state if not passed within set time
Infrared anti-clip protection during both open and running states
Compatible with multiple access technologies: IC, ID cards, scanning, and face recognition
Dual operation modes: open or closed configurations
Multiple working modes including two-way card reading and one-way card reading

Size Drawing

Technical Specifications

Parameter	Specification
Size	3200 × 210 × 1020 (mm)
Chassis	Top cover: 2.0mm cold roller with powder coating Housing: 2.0mm cold roller with powder coating Filling Panel: 10mm
Movement	Mechanism: Servo sliding gate Door panel: 10mm Transparent PC Pass Lane: 600-900mm
Electronic Control	Control board: Servo standard board + AB linkage Motor: Brushless servo 40:1 100W IR sensor: Light Curtain 64 Points + 20 pairs + 3D Visual Module Air switch: 2P
Power Supply	24V 500W / 12V 150W
Accessories	Connection cable: 5m 2×1.0m² RVV Network cable: 5m with crystal tips on both ends
Package	Pearl cotton: Foam liner Cardboard box: 3260 × 270 × 1080

Case Examples
