High Security Subway Metro Entrance Ticket Checking Turnstile Gate T3630

Name: High Security Subway Metro Entrance Ticket Checking Turnstile Gate T3630
Brand: Turboo Automation Co., Ltd
SKU: T3630
Availability: InStock

Nama merek:	Turboo
Nomor Model:	T3630
MOQ:	1 buah
harga:	negotiable
Waktu Pengiriman:	7-15 hari kerja
Ketentuan Pembayaran:	L/C, T/T

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

CE, ISO9001,RoHS,Fcc,etc

Ukuran:

2100*220*1150(mm)

Bahan:

2.0mm SUS304

Mekanisme:

Gerakan gerbang ayun pengemudi langsung servo

sensor IR:

24 pasang

Catu daya:

48V 450W

Lewati Jalur:

600-900mm

Papan kontrol:

Papan standar servo + papan driver + papan logika

Kemasan rincian:

Paket Kotak Kayu

Menyediakan kemampuan:

Pengangkatan Pneumatik

Menyoroti:

high security metro turnstile gate

subway entrance ticket checking turnstile

speed gate turnstile with warranty

Deskripsi Produk

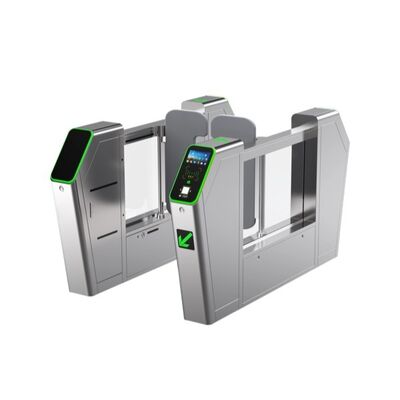

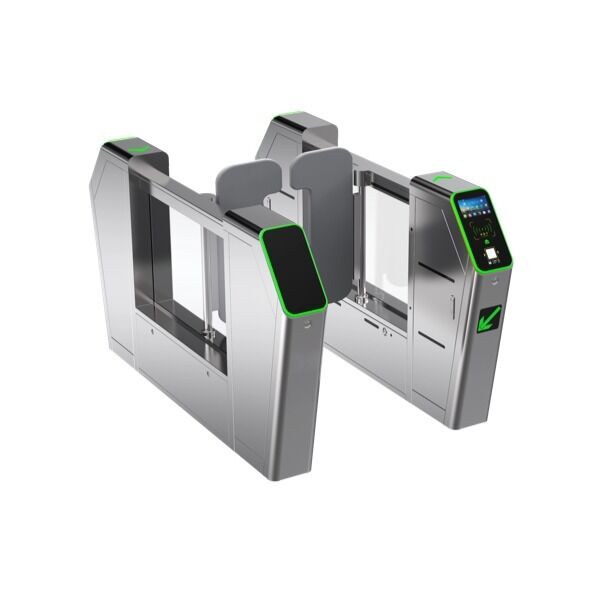

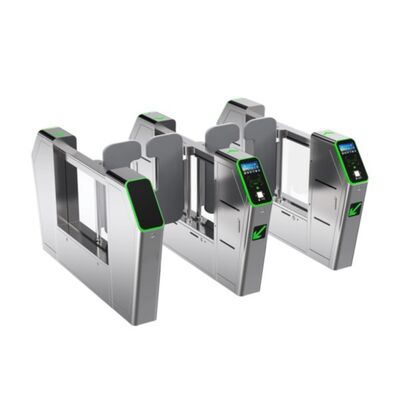

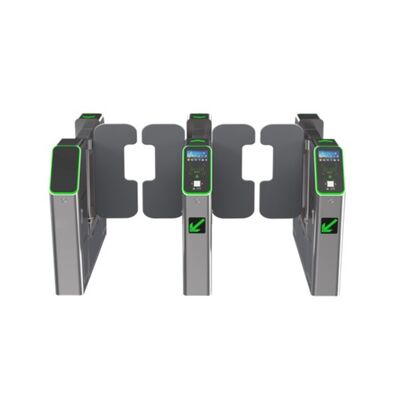

High Security Subway Metro Entrance Ticket Checking Turnstile Gate T3630

The smart access control pedestrian swing barrier turnstile gate T3630 offers advanced access control systems with smooth operation and reliable performance for pedestrian traffic management.

Functions & Features

Reasonable and reliable design, low noise, smooth operation and long service life
Anti-tail and anti-reverse pass functions
Card can be set with "memory" or "without memory" functions
Automatic reset function - gate automatically restores to locked state if not passed within set time
Infrared anti-clip function (anti-clip when gate is open or running)
Compatible with IC, ID card, scanning and face recognition systems
Two modes of operation: open or closed
Various working modes including two-way card reading and one-way card reading

Specifications

Product Model	T3630
Size	2100×220×1150 (mm)
Chassis	Housing: 2.0mm SUS304 Filling Panel: 10mm transparent acrylic
Movement	Mechanism: Servo direct driver swing gate movement Door Panel: PU arm Pass Lane: 600-900mm
Electronic Control	Control Board: Servo standard board + driver board + logic board Motor: Servo direct drive brushless motor 200W IR Sensor: 24 pairs Air Switch: 2P Power Supply: 48V 450W
Accessories	Connection Cable: 5m 2×1.0m² RVV Network Cable: 5m both ends with crystal tips
Package	Pearl Cotton: Foam liner Cardboard Box: 2160×280×1210

Dimension Diagram

Scene Pictures
