rincian produk

Rumah Produk

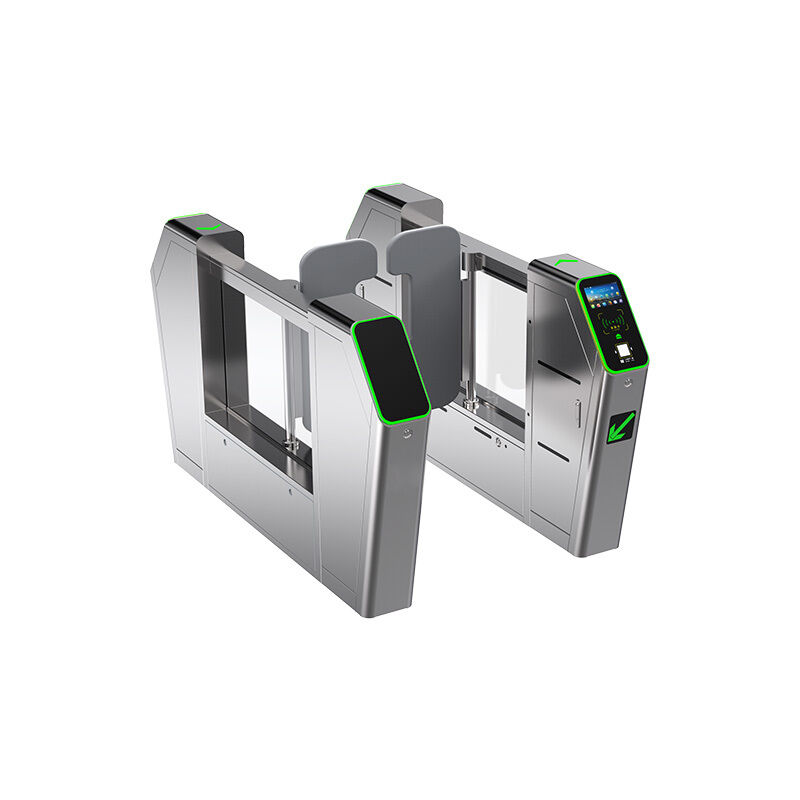

High Security Subway Metro Entrance Ticket Checking Turnstile Gate T3630

High Security Subway Metro Entrance Ticket Checking Turnstile Gate T3630

Nama merek:	Turboo
Nomor Model:	T3630
MOQ:	1 buah
harga:	negotiable
Waktu Pengiriman:	7-15 hari kerja
Ketentuan Pembayaran:	L/C, T/T

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Sertifikasi:

CE, ISO9001,FCC,RoHS,etc.

Ukuran:

2100*220*1150mm

Bahan:

2.0mm SUS304

Lebar lintasan:

600-900mm

Sensor:

24 pasang

Pengemudi:

Penggerak Langsung tanpa sikat servo 200W

Pengendali:

Kontrol Servo+ Kontrol Logika Sensor

Kekuatan:

Kemasan rincian:

Paket Kotak Kayu

Menyediakan kemampuan:

Pengangkatan Pneumatik

Menyoroti:

high security subway turnstile gate

metro entrance ticket checking turnstile

speed gate turnstile with warranty

Deskripsi Produk

High Security Subway Metro Entrance Ticket Checking Turnstile Gate T3630

Functions & Features

Reasonable and reliable design with low noise, smooth operation and long service life
Anti-tail and anti-reverse pass functions for enhanced security
Card can be set with "memory" or "without memory" functions
Automatic reset function - gates automatically restore to locked state if not passed within set time
Infrared anti-clip function (protection when gate is open or running)
Compatible with IC, ID card, scanning and face recognition systems
Two operation modes available: open or closed
Multiple working modes including two-way card reading and one-way card reading

Size Drawing

Technical Specifications

Parameter	Specification
Size	2100 × 220 × 1150 (mm)
Chassis	Top cover: 2mm SUS304
	Housing: 2mm SUS304
	Filling Panel: 10mm transparent acrylic
Movement	Mechanism: Servo direct driver swing gate movement
	Door panel: PU arm
	Pass Lane: 600-900mm
Electronic Control	Control board: Servo standard board + driver board + logic board
	Motor: Servo direct drive brushless motor 200W
	IR sensor: 24 pairs
	Air switch: 2P
Power Supply	48V 450W
Accessories	Connection cable: 5m 2×1.0m² RVV
Accessories	Network cable: 5m with crystal tips on both ends
Package	Pearl cotton: Foam liner
Package	Cardboard box: 2160 × 280 × 1210

Case Examples
