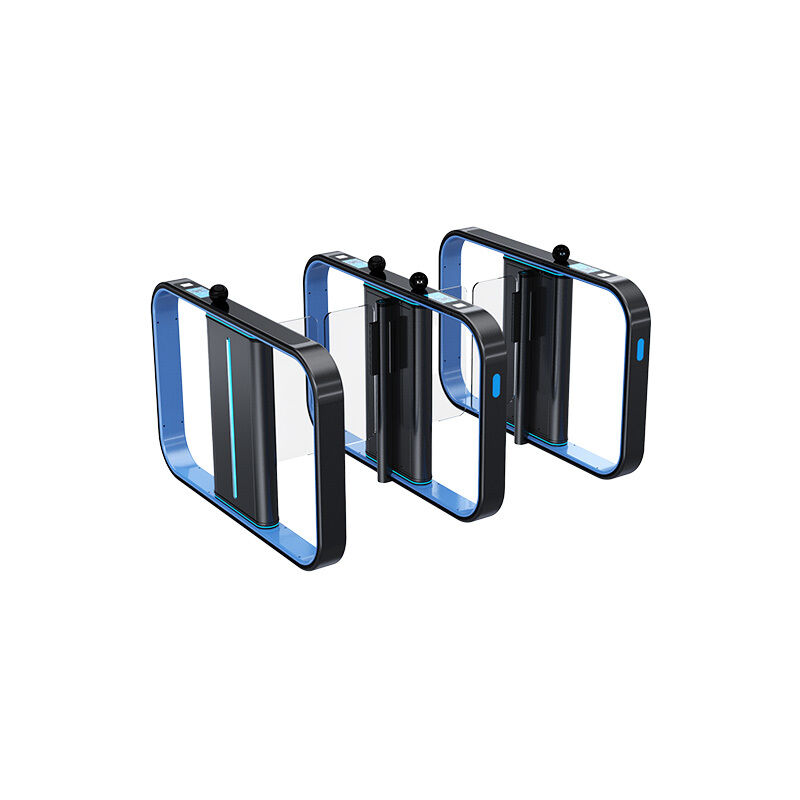

Smart Access Control Pedestrain Aluminum alloy Apex LA3220

Smart Access Control Pedestrain Aluminum alloy Apex LA3220

Nama merek:	Turboo
Nomor Model:	LA3220
MOQ:	1 buah
harga:	negotiable
Waktu Pengiriman:	7-15 hari kerja
Ketentuan Pembayaran:	L/C, T/T

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Sertifikasi:

CE, ISO9001,FCC,RoHS,etc.

Ukuran:

1500*130*980mm

Bahan:

Paduan Aluminium 2.0mm

Lebar lintasan:

600-900mm

Sensor:

Tirai Lampu Pengaman/Palang 48 titik

Pengemudi:

Motor tanpa sikat servo 100W

Pengendali:

Papan Servo

Kekuatan:

Kemasan rincian:

Paket Kotak Kayu

Menyediakan kemampuan:

Pengangkatan Pneumatik

Menyoroti:

aluminum alloy speed gate turnstile

smart access control turnstile

pedestrian speed gate with warranty

Deskripsi Produk

Smart Access Control Pedestrian Aluminum Alloy Apex LA3220

Functions & Features

Reasonable and reliable design, low noise, smooth operation and long service life
Anti-tail and anti-reverse pass functions
Card can be set with "memory" or "without memory" functions
Automatic reset function - gate automatically restores to locked state if not passed within set time
Infrared anti-clip function (protection when gate is open or running)
Compatible with IC, ID card, scanning and face recognition systems
Two operation modes available: open or closed
Various working modes including two-way card reading and one-way card reading

Size Drawing

Technical Specifications

Category	Specification
Size	1500×130×980 (mm)
Chassis	Housing: 2mm Aluminum alloy
	Mechanism: Servo Speed Door
	Door panel: 10mm Transparent PC
Pass Lane	600-900mm Transparent PC
Electronic Control	Control board: Servo control board
	Motor: Brushless servo 40:1 100W
	IR sensor: Safety Light curtain/Bar 48 points
	Air switch: 2P
Power Supply	24V 500W / 12V 3A
Accessories	Connection cable: 5m 2×1.0m² RVV
Accessories	Network cable: 5m with crystal tips
Package	Pearl cotton: Fully encapsulated protective cotton
Package	Cardboard box: 360×200×1460

Case Examples
